CCWFGM_WindSpeedGrid Class Reference

Class ICWFGM WindSpeedGrid. More...

#include <CWFGM_WindSpeedGrid.h>

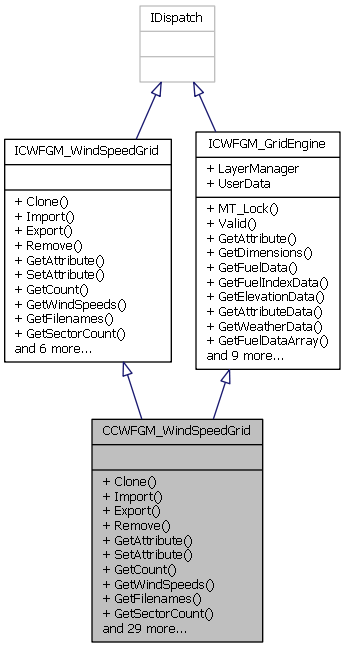

Collaboration diagram for CCWFGM_WindSpeedGrid:

Public Member Functions
STDMETHOD()	Clone (ICWFGM_WindSpeedGrid **newGrid)
STDMETHOD()	Import (const unsigned short sector, const double speed, const BSTR prj_file_name, const BSTR grid_file_name)
STDMETHOD()	Export (const unsigned short sector, const double speed, const BSTR prj_file_name, const BSTR grid_file_name)
STDMETHOD()	Remove (const unsigned short sector, const double speed)
STDMETHOD()	GetAttribute (USHORT option, VARIANT *value)
STDMETHOD()	SetAttribute (unsigned short option, VARIANT value)
STDMETHOD()	GetCount (const unsigned short sector, unsigned short *count)
STDMETHOD()	GetWindSpeeds (const unsigned short sector, unsigned short *count, SAFEARRAY **speed_array)
STDMETHOD()	GetFilenames (const unsigned short sector, SAFEARRAY **filenames)
STDMETHOD()	GetSectorCount (unsigned short *count)
STDMETHOD()	GetSectorAngles (const unsigned short sector, double *min_angle, double *max_angle)
STDMETHOD()	AddSector (const BSTR sector_name, double *min_angle, double *max_angle, unsigned short *index)
STDMETHOD()	RemoveSector (const unsigned short sector)
STDMETHOD()	GetSector (USHORT option, double *angle, unsigned short *sector, BSTR *sector_name)
STDMETHOD()	ImportFrom (ICWFGM_WeatherGridFilter *filter)
STDMETHOD()	ModifySectorSet (SAFEARRAY *set_modifier)
STDMETHOD()	MT_Lock (__int64 layerThread, USHORT exclusive, USHORT obtain)
STDMETHOD()	Valid (__int64 layerThread, ULONGLONG start_time, LONGLONG duration, ULONG option, SAFEARRAY **application_count)
STDMETHOD()	GetAttribute (__int64 layerThread, USHORT option, VARIANT *value)
STDMETHOD()	GetDimensions (__int64 layerThread, USHORT *x_dim, USHORT *y_dim)
STDMETHOD()	GetFuelData (__int64 layerThread, USHORT _x, USHORT _y, ULONGLONG time, ICWFGM_Fuel **fuel)
STDMETHOD()	GetFuelIndexData (__int64 layerThread, USHORT x, USHORT y, ULONGLONG time, UCHAR *fuel_index)
STDMETHOD()	GetElevationData (__int64 layerThread, USHORT x, USHORT y, SHORT allow_defaults_returned, double *elevation, double *slope_factor, double *slope_azimuth)
STDMETHOD()	GetAttributeData (__int64 layerThread, USHORT _x, USHORT _y, ULONGLONG time, USHORT option, VARIANT *attribute)
STDMETHOD()	GetWeatherData (__int64 layerThread, USHORT x, USHORT y, ULONGLONG time, ULONG interpolate_method, IWXData *wx, IFWIData *ifwi, DFWIData *dfwi)
STDMETHOD()	GetFuelDataArray (__int64 layerThread, USHORT x_min, USHORT y_min, USHORT x_max, USHORT y_max, ULONGLONG time, SAFEARRAY **fuel)
STDMETHOD()	GetFuelIndexDataArray (__int64 layerThread, USHORT x_min, USHORT y_min, USHORT x_max, USHORT y_max, ULONGLONG time, SAFEARRAY **fuel)
STDMETHOD()	GetElevationDataArray (__int64 layerThread, USHORT x_min, USHORT y_min, USHORT x_max, USHORT y_max, SHORT allow_defaults_returned, SAFEARRAY **elevation, SAFEARRAY **slope_factor, SAFEARRAY **slope_azimuth)
STDMETHOD()	GetWeatherDataArray (__int64 layerThread, USHORT x_min, USHORT y_min, USHORT x_max, USHORT y_max, ULONGLONG time, ULONG interpolate_method, SAFEARRAY **wx, SAFEARRAY **ifwi, SAFEARRAY **dfwi)
STDMETHOD()	GetAttributeDataArray (__int64 layerThread, USHORT _x_min, USHORT _y_min, USHORT _x_max, USHORT _y_max, ULONGLONG time, USHORT option, SAFEARRAY **attribute)
STDMETHOD()	GetEventTime (__int64 layerThread, ULONG flags, ULONGLONG from_time, ULONGLONG *next_event)
STDMETHOD()	PreCalculationEvent (__int64 layerThread, ULONGLONG time, ULONG mode)
STDMETHOD()	PostCalculationEvent (__int64 layerThread, ULONGLONG time, ULONG mode)
STDMETHOD()	GetGridEngine (__int64 layerThread, ICWFGM_GridEngine **pVal)
STDMETHOD()	PutGridEngine (__int64 layerThread, ICWFGM_GridEngine *newVal)
STDMETHOD()	get_LayerManager (ICWFGM_LayerManager **pVal)
STDMETHOD()	put_LayerManager (ICWFGM_LayerManager *newVal)
STDMETHOD()	get_UserData (VARIANT *pVal)
STDMETHOD()	put_UserData (VARIANT newVal)
Public Member Functions inherited from ICWFGM_WindSpeedGrid
HRESULT	Clone ([out]ICWFGM_WindSpeedGrid **newGrid)
HRESULT	Import ([in]const unsigned short sector, [in]const double speed, [in] const BSTR prj_file_name, [in]const BSTR grid_file_name)
HRESULT	Export ([in]const unsigned short sector, [in]const double speed, [in] const BSTR prj_file_name, [in]const BSTR grid_file_name)
HRESULT	Remove ([in]const unsigned short sector, [in]const double speed)
HRESULT	GetAttribute ([in]unsigned short option, [out, retval]VARIANT *value)
HRESULT	SetAttribute ([in]unsigned short option, [in]VARIANT value)
HRESULT	GetCount ([in]const unsigned short sector, [out, retval]unsigned short *count)
HRESULT	GetWindSpeeds ([in]const unsigned short sector, [out]unsigned short *count, [in, out]SAFEARRAY(double)*speed_array)
HRESULT	GetFilenames ([in]const unsigned short sector, [out]SAFEARRAY(BSTR)*filenames)
HRESULT	GetSectorCount ([out, retval]unsigned short *count)
HRESULT	GetSectorAngles ([in]const unsigned short sector, [out]double *min_angle, [out]double *max_angle)
HRESULT	AddSector ([in]const BSTR sector_name, [in, out]double *min_angle, [in, out]double *max_angle, [out, retval]unsigned short *index)
HRESULT	RemoveSector ([in]const unsigned short sector)
HRESULT	GetSector ([in]unsigned short option, [in, out]double *angle, [in, out]unsigned short *sector, [out]BSTR *sector_name)
HRESULT	ImportFrom ([in]ICWFGM_WeatherGridFilter *filter)
HRESULT	ModifySectorSet ([in]SAFEARRAY(WeatherGridSetModifier) set_modifier)
Public Member Functions inherited from ICWFGM_GridEngine
HRESULT	MT_Lock ([in] __int64 layerThread, [in] unsigned short exclusive, [in] unsigned short obtain)
HRESULT	Valid ([in] __int64 layerThread, [in] unsigned __int64 start_time, [in] __int64 duration, [in] unsigned long option, [in, out] SAFEARRAY(unsigned short)*application_count)
HRESULT	GetAttribute ([in] __int64 layerThread, [in] unsigned short option, [out, retval]VARIANT *value)
HRESULT	GetDimensions ([in] __int64 layerThread, [out] unsigned short *x_dim, [out]unsigned short *y_dim)
HRESULT	GetFuelData ([in] __int64 layerThread, [in] unsigned short _x, [in] unsigned short _y, [in] unsigned __int64 time, [out, retval]ICWFGM_Fuel **fuel)
HRESULT	GetFuelIndexData ([in] __int64 layerThread, [in] unsigned short x, [in] unsigned short y, [in] unsigned __int64 time, [out, retval]unsigned char *fuel_index)
HRESULT	GetElevationData ([in] __int64 layerThread, [in] unsigned short x, [in] unsigned short y, [in] short allow_defaults_returned, [out]double *elevation, [out] double *slope_factor, [out] double *slope_azimuth)
HRESULT	GetAttributeData ([in] __int64 layerThread, [in] unsigned short x, [in] unsigned short y, [in] unsigned __int64 time, [in] unsigned short option, [out, retval] VARIANT *attribute)
HRESULT	GetWeatherData ([in] __int64 layerThread, [in] unsigned short x, [in] unsigned short y, [in] unsigned __int64 time, [in]unsigned long interpolate_method, [out]IWXData *wx, [out]IFWIData *ifwi, [out]DFWIData *dfwi)
HRESULT	GetFuelDataArray ([in] __int64 layerThread, [in] unsigned short _x_min, [in] unsigned short _y_min, [in] unsigned short _x_max, [in]unsigned short _y_max,[in]unsigned __int64 time, [in, out] SAFEARRAY(ICWFGM_Fuel *)*fuel)
HRESULT	GetFuelIndexDataArray ([in] __int64 layerThread, [in]unsigned short _x_min, [in]unsigned short _y_min, [in]unsigned short _x_max, [in]unsigned short _y_max, [in]unsigned __int64 time, [in, out] SAFEARRAY(unsigned char)*fuel_index)
HRESULT	GetElevationDataArray ([in] __int64 layerThread, [in]unsigned short x_min, [in]unsigned short y_min, [in]unsigned short x_max, [in]unsigned short y_max, [in]short allow_defaults_returned, [in, out] SAFEARRAY(double)*elevation, [in, out] SAFEARRAY(double)*slope_factor, [in, out] SAFEARRAY(double)*slope_azimuth)
HRESULT	GetWeatherDataArray ([in] __int64 layerThread, [in]unsigned short x_min, [in]unsigned short y_min, [in]unsigned short x_max, [in] unsigned short y_max, [in]unsigned __int64 time, [in]unsigned long interpolate_method, [in, out] SAFEARRAY(IWXData)*wx, [in, out] SAFEARRAY(IFWIData)*ifwi, [in, out] SAFEARRAY(DFWIData)*dfwi)
HRESULT	GetAttributeDataArray ([in] __int64 layerThread, [in]unsigned short x_min, [in]unsigned short y_min, [in]unsigned short x_max, [in]unsigned short y_max, [in] unsigned __int64 time, [in] unsigned short option, [in, out] SAFEARRAY(VARIANT)*attribute)
HRESULT	GetEventTime ([in] __int64 layerThread, [in] unsigned long flags, [in] unsigned __int64 from_time, [out, retval] unsigned __int64 *next_event)
HRESULT	PreCalculationEvent ([in] __int64 layerThread, [in] unsigned __int64 time, [in] unsigned long mode)
HRESULT	PostCalculationEvent ([in] __int64 layerThread, [in] unsigned __int64 time, [in] unsigned long mode)
HRESULT	GetGridEngine ([in] __int64 layerThread, [out, retval] ICWFGM_GridEngine **pVal)
HRESULT	PutGridEngine ([in] __int64 layerThread, [in] ICWFGM_GridEngine *newVal)

Additional Inherited Members
Properties inherited from ICWFGM_GridEngine
ICWFGM_LayerManager	LayerManager [get, set]
VARIANT	UserData [get, set]

Detailed Description

Class ICWFGM WindSpeedGrid.

This object manages a collection weather data for a simulation engine's scenario. It implements the GridEngine interface for communication with the simulation engine. Since it only handles weather data, its GridEngine property should refer to an object that can provide fuel type and elevation data, latitude, longitude, etc. In addition to the GridEngine interface, it also implements its own interface so that a client application may specify a collection of wind speed grids for use in a simulation. It can be configured to handle any number of different arcs (sectors) representing different wind directions that can be encountered. Then, any number of these sectors can have wind speed grid information loaded into it, to be applied when specific input wind speeds are encountered. This object is unconcerned about how other weather data has been provided: if times and other input data are valid, then this object will apply the updated wind speed data according to the defined rules.

This object will also update any FWI calculations required based on options and input values.

No weather streams or weather stations are associated with this object since it simply updates and replaces wind speed values based on the grid rules.

Member Function Documentation

CCWFGM_WindSpeedGrid::AddSector	(	const BSTR	sector_name,
		double *	min_angle,
		double *	max_angle,
		unsigned short *	index
	)

Adds a sector to filter. The logic applied for determining the correct sector is >= min_angle, and < max_angle. When max_angle < min_angle, it is assumed to cross 0 degrees (north) in compass rotation. A sector must be at least 1 degree wide.

Parameters

sector_name	Sector Name value, only used by the client application.
min_angle	Minimum sector angle value, compass degress
max_angle	Maximum sector angle value, compass degrees
index	Index of new sector.

See Also

ICWFGM_WindSpeedGrid::AddSector

Return values

S_OK	Successful.
ERROR_DATA_NOT_UNIQUE	Data provided not unique
ERROR_SECTOR_TOO_SMALL	Sector value too small
ERROR_NAME_NOT_UNIQUE	Name provided not unique
E_POINTER	Invalid pointer.

CCWFGM_WindSpeedGrid::Clone

(

ICWFGM_WindSpeedGrid **

newGrid

)

Creates a new wind speed grid with all the same properties and data of the object being called, returns a handle to the new object in 'newGrid'. No data is shared between these two objects, an exact copy (including of all loaded wind speed grid data) is created.

Parameters

newGrid

A wind speed grid object.

See Also

ICWFGM_WindSpeedGrid::Clone

Return values

E_POINTER	The address provided for "newFilter" is invalid.
S_OK	Successful.
E_OUTOFMEMORY	Insufficient memory.
ERROR_SEVERITY_WARNING	Unspecified failure.
E_NOINTERFACE	Internal serialization issue.

CCWFGM_WindSpeedGrid::Export	(	const unsigned short	sector,
		const double	speed,
		const BSTR	prj_file_name,
		const BSTR	grid_file_name
	)

Exports a Wind Speed Grid from a specific sector, for a specific speed. Specification of the output projection file name is optional.

Parameters

sector	Index of sector.
speed	Wind speed value (kph)
prj_file_name	Projection File name
grid_file_name	Grid File name

See Also

ICWFGM_WindSpeedGrid::Export

Return values

S_OK	Successful.
ERROR_GRID_SIZE_INCORRECT	Incorrect grid size.
E_POINTER	Error
ERROR_GRID_UNINITIALIZED	Grid uninitialized.
ERROR_SCENARIO_SIMULATION_RUNNING	Scenario simulation running.

CCWFGM_WindSpeedGrid::get_LayerManager

(

ICWFGM_LayerManager **

pVal

)

This property is must be set before any calls to GetGridEngine or PutGridEngine. Additionally, this property should be considered write-once. This value should be set to the ICWFGM_LayerManager object which any layerThread assigned to this object will have been allocated from.

Parameters

pVal	value of LayerManager

CCWFGM_WindSpeedGrid::get_UserData

(

VARIANT *

pVal

)

This property is unused by this object, and is available for exclusive use by the client code. It is a VARIANT value to ensure that the client code can store a pointer value (if it chooses) for use in manual subclassing this object. This value is not loaded or saved during serialization operations, and it is the responsibility of the client code to manage any value or object stored here. Access to this property is not thread-safe.

Parameters

pVal	Value of UserData

See Also

ICWFGM_GridEngine::UserData

Return values

E_POINTER	The address provided for pVal is invalid
S_OK	Successful

CCWFGM_WindSpeedGrid::GetAttribute	(	USHORT	option,
		VARIANT *	value
	)

Polymorphic. This routine retrieves an attribute/option value given the attribute/option index.

Parameters

option

The attribute of interest. Valid attributes are: CWFGM_WEATHER_OPTION_START_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_END_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_START_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_WEATHER_OPTION_END_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_GRID_ATTRIBUTE_TIMEZONE 64-bit signed integer. Units are in seconds, relative to GMT. For example, MST (Mountain Standard Time) would be -6 * 60 * 60 seconds. Valid values are from -12 hours to +12 hours. CWFGM_GRID_ATTRIBUTE_DAYLIGHT_SAVINGS 64-bit signed integer. Units are in seconds. Amount of correction to apply for daylight savings time. CWFGM_GRID_ATTRIBUTE_DST_START 64-bit unsigned integer. Units are in seconds. Julian date determining when daylight savings starts within the calendar year. CWFGM_GRID_ATTRIBUTE_DST_END 64-bit unsigned integer. Units are in seconds. Julian date determining when daylight savings ends within the calendar year. CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS Boolean. Determines whether to use per-sector data. CWFGM_WEATHER_GRID_APPLY_FILE_DEFAULT Boolean. Determines whether to use default (shared among all data). If CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS is true, then per-sector data will conditionally override this default data. CWFGM_ATTRIBUTE_LOAD_WARNING BSTR. Any warnings generated by the COM object when deserializating.

value

Location for the retrieved value to be placed.

See Also

ICWFGM_GridEngine::GetAttribute(unsigned short, VARIANT *)

Return values

E_POINTER	value is NULL
E_INVALIDARG	unknown requested option
S_OK	Success

CCWFGM_WindSpeedGrid::GetAttribute	(	__int64	layerThread,
		USHORT	option,
		VARIANT *	value
	)

Polymorphic. If layerThread is non-zero, then this filter object simply forwards the call to the next lower GIS layer determined by layerThread. If layerthread is zero, then this object will interpret the call.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
option	The attribute of interest. Valid attributes are: CWFGM_WEATHER_OPTION_START_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_END_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_START_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_WEATHER_OPTION_END_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_GRID_ATTRIBUTE_TIMEZONE 64-bit signed integer. Units are in seconds, relative to GMT. For example, MST (Mountain Standard Time) would be -6 * 60 * 60 seconds. Valid values are from -12 hours to +12 hours. CWFGM_GRID_ATTRIBUTE_DAYLIGHT_SAVINGS 64-bit signed integer. Units are in seconds. Amount of correction to apply for daylight savings time. CWFGM_GRID_ATTRIBUTE_DST_START 64-bit unsigned integer. Units are in seconds. Julian date determining when daylight savings starts within the calendar year. CWFGM_GRID_ATTRIBUTE_DST_END 64-bit unsigned integer. Units are in seconds. Julian date determining when daylight savings ends within the calendar year. CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS Boolean. Determines whether to use per-sector data. CWFGM_WEATHER_GRID_APPLY_FILE_DEFAULT Boolean. Determines whether to use default (shared among all data). If CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS is true, then per-sector data will conditionally override this default data. CWFGM_ATTRIBUTE_LOAD_WARNING BSTR. Any warnings generated by the COM object when deserializating.
value	Location for the retrieved value to be placed.

See Also

ICWFGM_GridEngine::GetAttribute(__int64, unsigned short, VARIANT *)

Return values

E_POINTER	value is NULL
ERROR_GRID_UNINITIALIZED	No object in the grid layering to forward the request to.
S_OK	Success

CCWFGM_WindSpeedGrid::GetAttributeData	(	__int64	layerThread,
		USHORT	_x,
		USHORT	_y,
		ULONGLONG	time,
		USHORT	option,
		VARIANT *	attribute
	)

Polymorphic. This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
_x	Value on x-axis.
_y	Value on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
option	Data array option.
attribute	Return value for attribute.

See Also

ICWFGM_GridEngine::GetAttributeData

Return values

S_OK	Returned attribute is valid.
ERROR_GRID_UNINITIALIZED	No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetAttributeDataArray	(	__int64	layerThread,
		USHORT	_x_min,
		USHORT	_y_min,
		USHORT	_x_max,
		USHORT	_y_max,
		ULONGLONG	time,
		USHORT	option,
		SAFEARRAY **	attribute
	)

Polymorphic. This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
_x_min	Minimum value (inclusive) on x-axis.
_y_min	Minimum value (inclusive) on y-axis.
_x_max	Maximum value (inclusive) on x-axis.
_y_max	Maximum value (inclusive) on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
option	Data array option.
attribute	Data array attribute.

See Also

ICWFGM_GridEngine::GetAttributeDataArray

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetCount	(	const unsigned short	sector,
		unsigned short *	count
	)

Returns the number of grid files loaded into the specified sector.

Parameters

sector	Index of sector.
count	Number of wind speed ranges.

See Also

ICWFGM_WindSpeedGrid::GetCount

Return values

S_OK	Successful.
ERROR_SECTION_INVALID_INDEX	Invalid section value error
E_POINTER	Invalid pointer

CCWFGM_WindSpeedGrid::GetDimensions	(	__int64	layerThread,
		USHORT *	x_dim,
		USHORT *	y_dim
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x_dim	x dimension of the grid.
y_dim	y dimension of the grid.

See Also

ICWFGM_GridEngine::GetDimensions

CCWFGM_Grid::GetDimensions

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetElevationData	(	__int64	layerThread,
		USHORT	x,
		USHORT	y,
		SHORT	allow_defaults_returned,
		double *	elevation,
		double *	slope_factor,
		double *	slope_azimuth
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x	x grid location.
y	y grid location.
allow_defaults_returned	Flag for allowing defaults to be returned
elevation	Elevation (m) of the requested location.
slope_factor	Percentage ground slope specified as a decimal value (0 - 1)
slope_azimuth	Direction of up-slope, Cartesian radians.

See Also

ICWFGM_GridEngine::GetElevationData

CCWFGM_Grid::GetElevationData

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetElevationDataArray	(	__int64	layerThread,
		USHORT	x_min,
		USHORT	y_min,
		USHORT	x_max,
		USHORT	y_max,
		SHORT	allow_defaults_returned,
		SAFEARRAY **	elevation,
		SAFEARRAY **	slope_factor,
		SAFEARRAY **	slope_azimuth
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x_min	Minimum value (inclusive) on x-axis.
y_min	Minimum value (inclusive) on y-axis.
x_max	Maximum value (inclusive) on x-axis.
y_max	Maximum value (inclusive) on y-axis.
allow_defaults_returned	Flag for allowing defaults to be returned
elevation	Array of elevations for the defined bounding rectangle (to fill in).
slope_factor	Array of slope factors for the defined bounding rectangle (to fill in).
slope_azimuth	Array of slope azimuths for the defined bounding rectangle (to fill in).

See Also

ICWFGM_GridEngine::GetElevationDataArray

CCWFGM_Grid::GetElevationDataArray

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetEventTime	(	__int64	layerThread,
		ULONG	flags,
		ULONGLONG	from_time,
		ULONGLONG *	next_event
	)

This method will examine start and end dates and diurnal periods to determine the time at which the next event for known change in weather data occurs. This filter object it will then forward the call to the next lower GIS layer determined by layerThread and combine results.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
flags	Calculation flags. Valid bit-flag identifiers are: CWFGM_GETEVENTTIME_FLAG_SEARCH_FORWARD search forward in time CWFGM_GETEVENTTIME_FLAG_SEARCH_BACKWARD search backwards in time CWFGM_GETEVENTTIME_QUERY_PRIMARY_WX_STREAM only the primary weather stream may respond CWFGM_GETEVENTTIME_QUERY_ANY_WX_STREAM only weather streams may respond
from_time	A GMT time provided as seconds since January 1st, 1600.
next_event	A GMT time provided as seconds since January 1st, 1600, representing the time for the next event, based on 'flags'.

See Also

ICWFGM_GridEngine::GetEventTime

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetFilenames	(	const unsigned short	sector,
		SAFEARRAY **	filenames
	)

Returns an array of filenames for specified wind speed sector

Parameters

sector	Index of sector.
filenames	File names for sector

See Also

ICWFGM_WindSpeedGrid::GetFilenames

Return values

S_OK	Successful.
ERROR_SECTOR_INVALID_INDEX	Invalid sector index.

CCWFGM_WindSpeedGrid::GetFuelData	(	__int64	layerThread,
		USHORT	_x,
		USHORT	_y,
		ULONGLONG	time,
		ICWFGM_Fuel **	fuel
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
_x	Value on x-axis.
_y	Value on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
fuel	return value

See Also

ICWFGM_GridEngine::GetFuelData

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetFuelDataArray	(	__int64	layerThread,
		USHORT	_x_min,
		USHORT	_y_min,
		USHORT	_x_max,
		USHORT	_y_max,
		ULONGLONG	time,
		SAFEARRAY **	fuel
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
_x_min	Minimum value (inclusive) on x-axis.
_y_min	Minimum value (inclusive) on y-axis.
_x_max	Maximum value (inclusive) on x-axis.
_y_max	Maximum value (inclusive) on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
fuel	array for return values

See Also

ICWFGM_GridEngine::GetFuelDataArray

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetFuelIndexData	(	__int64	layerThread,
		USHORT	x,
		USHORT	y,
		ULONGLONG	time,
		UCHAR *	fuel_index
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x	Value on x-axis.
y	Value on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
fuel_index	return value

See Also

ICWFGM_GridEngine::GetFuelIndexData

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetFuelIndexDataArray	(	__int64	layerThread,
		USHORT	_x_min,
		USHORT	_y_min,
		USHORT	_x_max,
		USHORT	_y_max,
		ULONGLONG	time,
		SAFEARRAY **	fuel
	)

This filter object simply forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
_x_min	Minimum value (inclusive) on x-axis.
_y_min	Minimum value (inclusive) on y-axis.
_x_max	Maximum value (inclusive) on x-axis.
_y_max	Maximum value (inclusive) on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
fuel	array for return values

See Also

ICWFGM_GridEngine::GetFuelIndexData

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::GetGridEngine	(	__int64	layerThread,
		ICWFGM_GridEngine **	pVal
	)

This method retrieves the next lower GIS layer for layerThread, used to determine the stacking and order of objects associated to a scenario.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
pVal	Pointer to grid engine.

See Also

ICWFGM_GridEngine::GetGridEngine

Return values

S_OK	Successful look-up
E_POINTER	Address provided for value is invalid.

CCWFGM_WindSpeedGrid::GetSector	(	USHORT	option,
		double *	angle,
		unsigned short *	sector,
		BSTR *	sector_name
	)

Gets the details of a sector of the grid. If option is CWFGM_WINDGRID_BYINDEX, this method populates angle[0], angle[1], and sector_name, with the minimum angle, maximum angle, and name assigned to this sector, respectively. If option is CWFGM_WINDGRID_BYANGLE, this method populates sector and sector_name with the index of, and name assigned, to sector. If option is any other value, no action is taken and the method return S_FALSE.

Gets the details of a sector of the grid. This function has two modes: If option is CWFGM_WINDGRID_BYINDEX, then this method keys off '*sector' and populates angle[0], angle[1], and sector_name, with the minimum angle, maximum angle, and name assigned to this sector, respectively.
If option is CWFGM_WINDGRID_BYANGLE, then this method keys off '*angle' and populates sector and sector_name with the index of, and name assigned, to sector.

Parameters

option	Option value
angle	Angle value
sector	Index of sector.
sector_name	Sector name

See Also

ICWFGM_WindSpeedGrid::GetSector

Return values

S_OK	Successful.
ERROR_INVALID_INDEX	Error invalid index in 'sector'.
ERROR_INVALID_DATA	Error invalid data in 'angle' - no sector exists which contains 'angle'.
E_INVALIDARG	Unknown option.

CCWFGM_WindSpeedGrid::GetSectorAngles	(	const unsigned short	sector,
		double *	min_angle,
		double *	max_angle
	)

Get the minimum and maximum sector angles for a specific sector. The logic applied for determining the correct sector is >= min_angle, and < max_angle. When max_angle < min_angle, it is assumed to cross 0 degrees.

Parameters

sector	Index of sector.
min_angle	Minimum sector angle value, compass degrees
max_angle	Maximum sector angle value, compass degrees

See Also

ICWFGM_WindSpeedGrid::GetSectorAngles

Return values

S_OK	Successful.
ERROR_SECTOR_INVALID_INDEX	Invalid Sector Index.

CCWFGM_WindSpeedGrid::GetSectorCount

(

unsigned short *

count

)

Returns number of sectors which exist.

Parameters

count

Stores the number of sectors for the filter

See Also

ICWFGM_WindSpeedGrid::GetSectorCount

Return values

S_OK	Successful.

CCWFGM_WindSpeedGrid::GetWeatherData	(	__int64	layerThread,
		USHORT	x,
		USHORT	y,
		ULONGLONG	time,
		ULONG	interpolate_method,
		IWXData *	wx,
		IFWIData *	ifwi,
		DFWIData *	dfwi
	)

This object conditionally updates weather at location (x, y) at time 'time'. 'interpolate_method' determines various rules for how FWI calculations take place: if FWI calculations are being recursively calculated back in time, etc. All weather and fwi calculations are performed (as requested and determined). Note that some modes require a potentially long- duration recursive calculation to take place, which may take some time (and stack space) to perform.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x	Value on x-axis.
y	Value on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
interpolate_method	Interpolation method identifier. Valid bit-flag identifiers are: CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_SPATIAL Boolean. When TRUE, spatial weather interpolation is turned on. This option applies to both WX and FWI values, and will work whether there is 1 or more weather stations assigned to the scenario. If FALSE, then there should only be one weather stream. CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_CALCFWI Boolean. If FALSE, then the current FWI values are returned (possibly interpolated). If TRUE, then the current FWI values are calculated from the prior FWI values and the current weather values (likely spatially interpolated). CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_HISTORY Boolean. Conditional on CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_SPATIAL and CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_CALCFWI. If TRUE, then historical FWI values are calculated to try to attain equilibrium on FWI values. CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_TEMPORAL Boolean. When TRUE, temporal weather interpolation is turned on, for all of the WX and hourly/instantantaneous FWI calculations.
wx	Weather information.
ifwi	IFWI Information.
dfwi	DFWI Information.

See Also

ICWFGM_GridEngine::GetWeatherData

Return values

CWFGM_WEATHER_INITIAL_VALUES_ONLY	Given time, only initial weather values (used for starting FWI calculations) could be returned.
ERROR_INVALID_DATA	Invalid latitude/longitude available for calculations.
E_INVALIDARG	Error in calculations (likely FWI calculations).
E_POINTER	Invalid wx, ifwi, or dfwi pointers.
S_OK	Calculations are successful

CCWFGM_WindSpeedGrid::GetWeatherDataArray	(	__int64	layerThread,
		USHORT	x_min,
		USHORT	y_min,
		USHORT	x_max,
		USHORT	y_max,
		ULONGLONG	time,
		ULONG	interpolate_method,
		SAFEARRAY **	wx,
		SAFEARRAY **	ifwi,
		SAFEARRAY **	dfwi
	)

This object conditionally updates weather at the specified location for storage in the provided array(s) at time 'time'. 'interpolate_method' determines various rules for how FWI calculations take place: if FWI calculations are being recursively calculated back in time, etc. All weather and fwi calculations are performed (as requested and determined). Note that some modes require a potentially long- duration recursive calculation to take place, which may take some time (and stack space) to perform.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
x_min	Minimum value (inclusive) on x-axis.
y_min	Minimum value (inclusive) on y-axis.
x_max	Maximum value (inclusive) on x-axis.
y_max	Maximum value (inclusive) on y-axis.
time	A GMT time provided as seconds since January 1st, 1600.
interpolate_method	Interpolation method identifier. Valid bit-flag identifiers are: CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_SPATIAL Boolean. When TRUE, spatial weather interpolation is turned on. This option applies to both WX and FWI values, and will work whether there is 1 or more weather stations assigned to the scenario. If FALSE, then there should only be one weather stream. CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_CALCFWI Boolean. If FALSE, then the current FWI values are returned (possibly interpolated). If TRUE, then the current FWI values are calculated from the prior FWI values and the current weather values (likely spatially interpolated). CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_HISTORY Boolean. Conditional on CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_SPATIAL and CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_CALCFWI. If TRUE, then historical FWI values are calculated to try to attain equilibrium on FWI values. CWFGM_SCENARIO_OPTION_WEATHER_INTERPOLATE_TEMPORAL Boolean. When TRUE, temporal weather interpolation is turned on, for all of the WX and hourly/instantantaneous FWI calculations.
wx	Array of Weather information.
ifwi	Array of Instantaneous FWI codes.
dfwi	Array of Daily FWI codes.

See Also

ICWFGM_GridEngine::GetWeatherDataArray

Return values

ERROR_GRID_UNINITIALIZED	No object in the grid layering to forward the request to.
E_INVALIDARG	The array is not 2D, or is insufficient in size to contain the requested data

CCWFGM_WindSpeedGrid::GetWindSpeeds	(	const unsigned short	sector,
		unsigned short *	count,
		SAFEARRAY **	speed_array
	)

Returns the wind speeds for all grid files loaded into the specified sector.

Parameters

sector	Index of sector.
count	Returns number of elements stored in speed_array
speed_array	2D Speed data for sectors

See Also

ICWFGM_WindSpeedGrid::GetWindSpeeds

Return values

S_OK	Successful.
E_POINTER	Invalid pointer
E_INVALIDARG	Invalid argument
ERROR_SECTION_INVALID_INDEX	Invalid section index error

CCWFGM_WindSpeedGrid::Import	(	const unsigned short	sector,
		const double	speed,
		const BSTR	prj_file_name,
		const BSTR	grid_file_name
	)

Imports a Wind Speed Grid to a specific sector and assigned applicable speed ranges. If the import projection file is unspecified, then it is assumed to match the projection for the associated main ICWFGM_GridEngine object.

Parameters

sector	Index of sector.
speed	Wind speed value (kph)
prj_file_name	Projection File name
grid_file_name	Grid File name

See Also

ICWFGM_WindSpeedGrid::Import

Return values

S_OK	Successful.
ERROR_GRID_SIZE_INCORRECT	Incorrect grid size.
E_POINTER	Error
ERROR_GRID_UNINITIALIZED	Grid uninitialized.
ERROR_SCENARIO_SIMULATION_RUNNING	Scenario simulation running.
ERROR_SEVERITY_WARNING	Failed initialization or a non-specific I/O error. Wind speed values are limited to 250kph.

CCWFGM_WindSpeedGrid::ImportFrom

(

ICWFGM_WeatherGridFilter *

filter

)

Imports from an existing filter. This function only exists to support legacy FGM files and should not be called directly by any client code.

Parameters

filter

Weather grid filter to import from

Return values

S_OK	Successful.
E_POINTER	Invalid pointer.

CCWFGM_WindSpeedGrid::ModifySectorSet

(

SAFEARRAY *

set_modifier

)

Updates the wind direction ranges in the grid.

Parameters

set_modifier

A list of grid values to modify.

CCWFGM_WindSpeedGrid::MT_Lock	(	__int64	layerThread,
		USHORT	exclusive,
		USHORT	obtain
	)

Changes the state of the object with respect to access rights. When the object is used by an active simulation, it must not be modified. When the object is somehow modified, it must be done so in an atomic action to prevent concerns with arising from multithreading. Note that these locks are primarily needed to ensure that data contributing during a simulation is not modified while the simulation is executing.

All routines in the ICWFGM_GridEngine interface are necessarily NOT multithreading safe (for performance) but other interfaces for a given COM object implementing this interface must be by specification. Locking request is forwarded to the next lower object in the 'layerThread' layering.

In the event of an error, then locking is undone to reflect an error state.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
exclusive	TRUE if the requester wants a write lock, false for read/shared access
obtain	TRUE to obtain the lock, FALSE to release the lock. If this is FALSE, then the 'exclusive' parameter must match the initial call used to obtain the lock.

See Also

ICWFGM_GridEngine::MT_Lock

Return values

SUCCESS_STATE_OBJECT_UNLOCKED	Lock was released.
SUCCESS_STATE_OBJECT_LOCKED_WRITE	Exclusive/write lock obtained.
SUCCESS_STATE_OBJECT_LOCKED_SCENARIO	A scenario successfully required a lock for purposes of simulating.
SUCCESS_STATE_OBJECT_LOCKED_READ	Shared/read lock obtained.
S_OK	Successful
ERROR_GRID_UNINITIALIZED	No path via layerThread can be determined to further determine successful locks.

CCWFGM_WindSpeedGrid::PostCalculationEvent	(	__int64	layerThread,
		ULONGLONG	time,
		ULONG	mode
	)

This filter object handles caching of spatial weather data, then forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
time	A GMT time provided as seconds since January 1st, 1600.
mode	Calculation mode.

See Also

ICWFGM_GridEngine::PostCalculationEvent

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::PreCalculationEvent	(	__int64	layerThread,
		ULONGLONG	time,
		ULONG	mode
	)

This filter object handles caching of spatial weather data, then forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
time	A GMT time provided as seconds since January 1st, 1600.
mode	Calculation mode.

See Also

ICWFGM_GridEngine::PreCalculationEvent

Return values

ERROR_GRID_UNINITIALIZED

No object in the grid layering to forward the request to.

CCWFGM_WindSpeedGrid::put_LayerManager

(

ICWFGM_LayerManager *

newVal

)

This property is must be set before any calls to GetGridEngine or PutGridEngine. Additionally, this property should be considered write-once. This value should be set to the ICWFGM_LayerManager object which any layerThread assigned to this object will have been allocated from.

Parameters

newVal

value for LayerManager

CCWFGM_WindSpeedGrid::put_UserData

(

VARIANT

newVal

)

This property is unused by this object, and is available for exclusive use by the client code. It is a VARIANT value to ensure that the client code can store a pointer value (if it chooses) for use in manual subclassing this object. This value is not loaded or saved during serialization operations, and it is the responsibility of the client code to manage any value or object stored here. Access to this property is not thread-safe.

Parameters

newVal

Replacement value for UserData

See Also

ICWFGM_GridEngine::UserData

Return values

S_OK	Successful

CCWFGM_WindSpeedGrid::PutGridEngine	(	__int64	layerThread,
		ICWFGM_GridEngine *	newVal
	)

This method sets the next lower GIS layer for layerThread, used to determine the stacking and order of objects associated to a scenario.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
newVal	Pointer to new grid engine.

See Also

ICWFGM_GridEngine::PutGridEngine

Return values

E_NOINTERFACE	Provided object (newVal) does not support the required ICWFGM_GridEngine interface (mis-cast)
S_OK	Mapping assignment between layerThread and newval was successful.

CCWFGM_WindSpeedGrid::Remove	(	const unsigned short	sector,
		const double	speed
	)

Remove a loaded grid applicable to a given speed from the specified sector.

Parameters

sector	Index of sector.
speed	Speed value (kph)

See Also

ICWFGM_WindSpeedGrid::Remove

Return values

S_OK	Successful.
ERROR_SECTOR_INVALID_INDEX	Invalid sector index error
ERROR_SPEED_OUT_OF_RANGE	Speed out of range error

CCWFGM_WindSpeedGrid::RemoveSector

(

const unsigned short

sector

)

Removes sector from filter

Parameters

sector

Index of sector.

See Also

ICWFGM_WindSpeedGrid::RemoveSector

Return values

S_OK
ERROR_SECTOR_INVALID_INDEX	Invalid sector index.

CCWFGM_WindSpeedGrid::SetAttribute	(	unsigned short	option,
		VARIANT	value
	)

Sets the value of an "option" to the value of the "value" variable provided.

Parameters

option

The weather option of interest. Valid options are: CWFGM_WEATHER_OPTION_START_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_END_TIME 64-bit unsigned integer. GMT time provided as seconds since Midnight January 1, 1600 CWFGM_WEATHER_OPTION_START_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_WEATHER_OPTION_END_TIMESPAN 64-bit signed integer. Units are in seconds. Specifies the start of the diurnal application period for this weather object. CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS Boolean. Determines whether to use per-sector data. CWFGM_WEATHER_GRID_APPLY_FILE_DEFAULT Boolean. Determines whether to use default (shared among all data). If CWFGM_WEATHER_GRID_APPLY_FILE_SECTORS is true, then per-sector data will conditionally override this default data.

value

Value of attribute

See Also

ICWFGM_WindSpeedGrid::SetAttribute

Return values

S_OK	Successful.
E_INVALIDARG	Invalid argument
E_POINTER	Invalid pointer

CCWFGM_WindSpeedGrid::Valid	(	__int64	layerThread,
		ULONGLONG	start_time,
		LONGLONG	duration,
		ULONG	option,
		SAFEARRAY **	application_count
	)

This method validates weather grid based on its start time, duration, and other properties. It then forwards the call to the next lower GIS layer determined by layerThread.

Parameters

layerThread	Handle for scenario layering/stack access, allocated from an ICWFGM_LayerManager COM object. Needed. It is designed to allow nested layering analogous to the GIS layers.
start_time	Start time of grid data
duration	Duration of observational data in grid
option	Determines type of Valid request.
application_count	Optional (dependent on option). Array of counts for how often a particular type of grid occurs in the set of ICWFGM_GridEngine objects associated with a scenario.

See Also

ICWFGM_GridEngine::Valid

Return values

S_OK	Successful.
ERROR_SEVERITY_WARNING	Grid validation failed based on options provided.
ERROR_GRID_WEATHER_NOT_IMPLEMENTED	Invalid grid.
